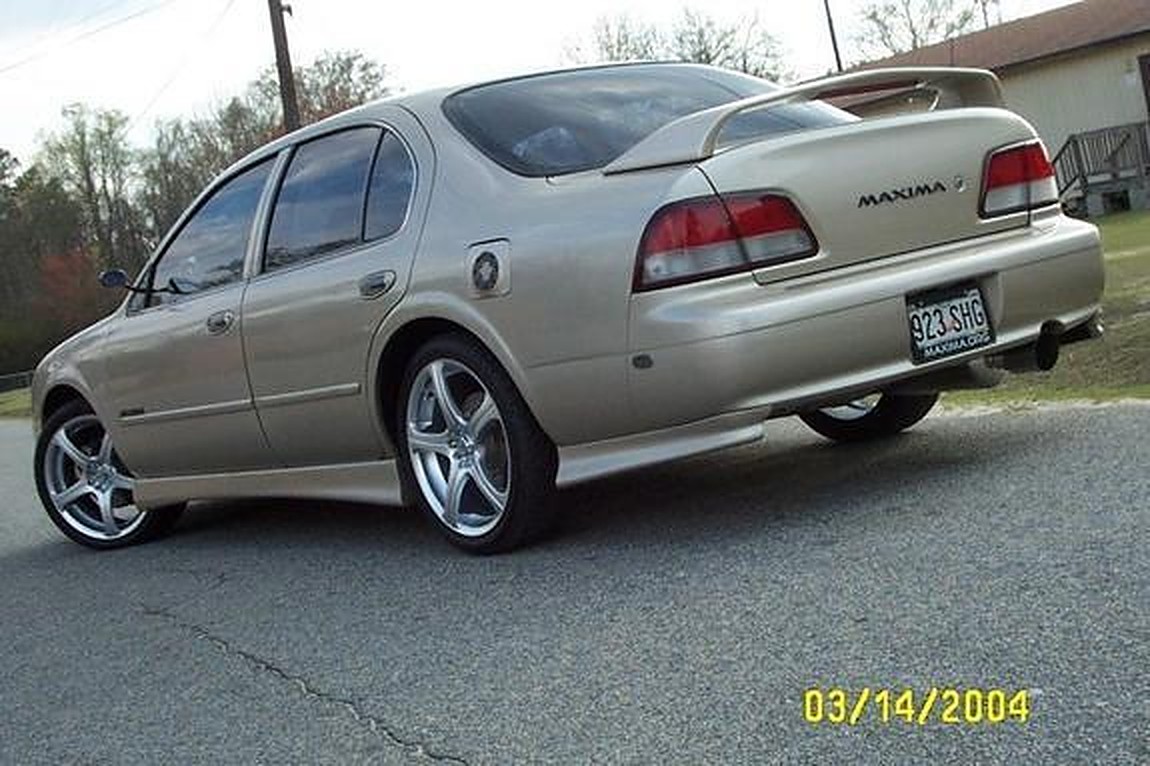

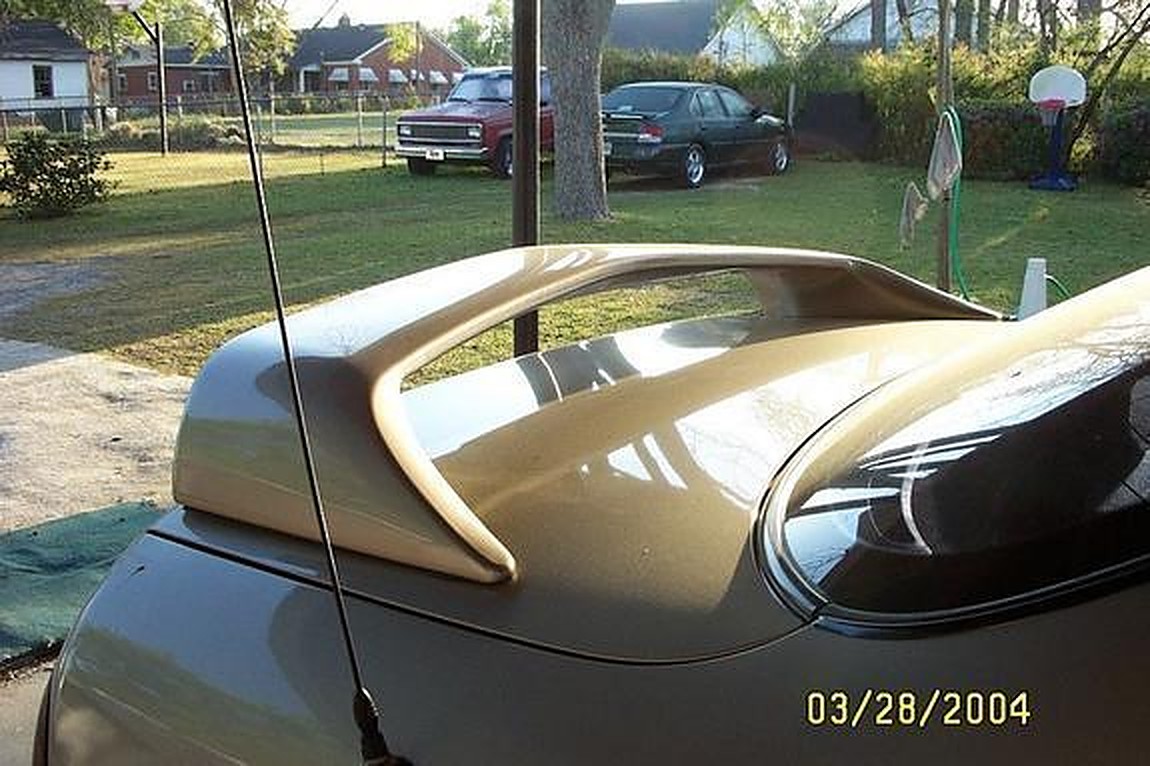

1995-1999 4thgen Nissan maxima with 2001 Mitsubishi Galant Spoiler Installed

Credit: Will

NOTE: Use General Judgment (a.k.a Common Sense) when doing modifications like these. This is just what I did to install this spoiler on my car so I am not liable for you drilling a hole in your car or messing something up OK! If you cannot attempt to do this take it to a body shop where they have more experience with fitment issues and putting parts on cars!

Tools:

Drill
A few small drill bits
A ratchet and some sockets
Silicone
Another person (4 hands are better than one, my wife helped me, it took us about 2 hours to install it)
Longer bolts and lock washers than what came w/the spoiler (take the spoiler to the local hardware store and get different length bolts and check the threads to make sure they fit)
Marker
Wire taps (to tap into the brake light wiring)

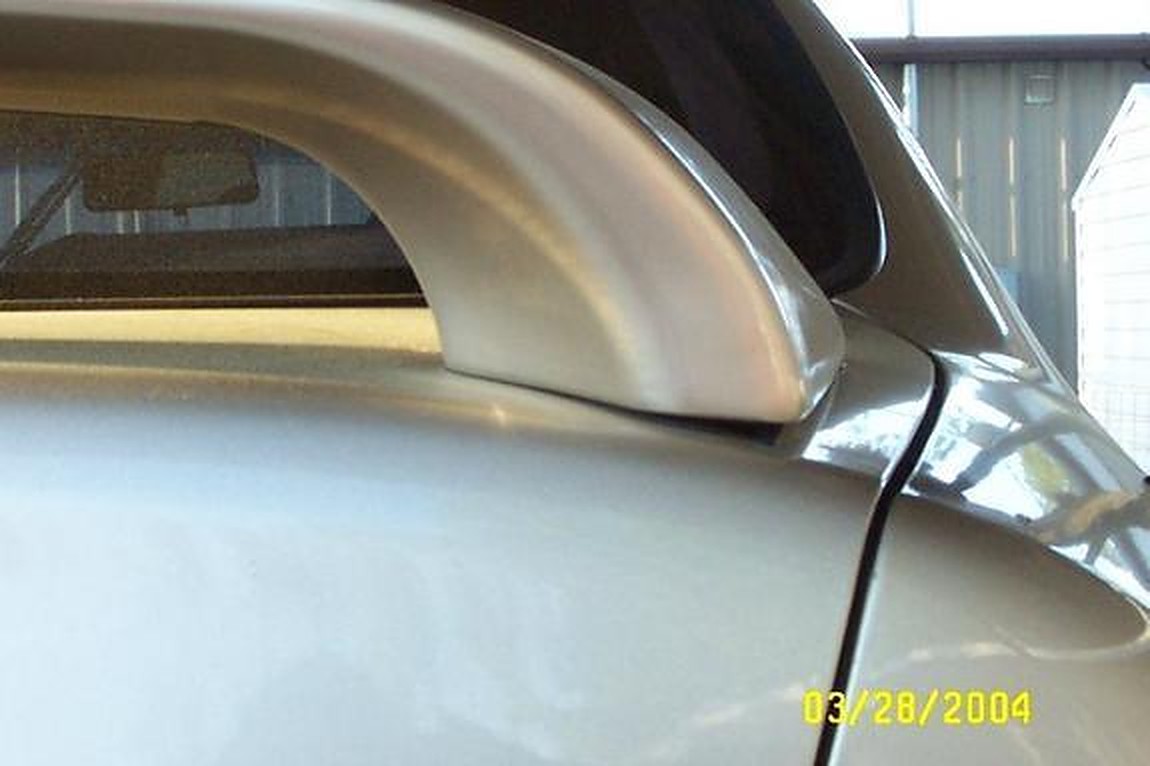

NOTE: This spoiler was made to fit a Mitsubishi Galant’s trunk it is flat all the way across and I put it on my 1997 Nissan Maxima and the Maxima’s trunk is rounded on the ends so it DOES NOT FIT EXACTLY flush on the ends but must bee seen up close to recognize it. I have had my spoiler on my car for 3 years w/no problems at all.

The GTZ spoiler will come w/some short bolts (because it was made for a Galant trunk and the Galant trunk is thinner than a Maxima trunk, also the Maxima’s’ trunk has two walls to drill through) about an 1″ long you will need to buy some bolts that are about 1 ?? long to go all the way through the trunk to tighten into the spoiler. The spoiler will come with a template and a rubber gasket center the gasket and template on the trunk lid and mark your drill points w/a marker. Drill a pilot hole in all the 5 places, two each side for the spoiler bolts and one on the left side for the L.E.D. brake wiring to go through. You will need to drill through both walls on the trunk. Please be patient will all this drilling your holes need to line up. Place the spoiler on the trunk lid and test fit your holes to see if they are straight if they are remove the spoiler and then apply some silicone in around the holes and on the bottom on the spoiler. Tighten down all your bolts to a good and snug hand tight fit. Then run your brake light wiring to the brake light wiring then tap into the ground and the power of the brake light and then splice into it.
