Please note that this post is for reference and documentation purposes ONLY. Matt Blehm no longer offers these products or services. Products were available from 2003 to around 2009.

BlehmCo Maxima Big Brake Kits

Front Big Brake Kit #1–2004 Maxima Rotors with 300ZX calipers: This kit fits all 1989 through 2003 models

Front Big Brake Kit #2–2004 Maxima Rotors with OEM 5th generation calipers: This kit only fits 2000 and 2001 models

REAR Big Brake Kit This kit fits all 1995 through 2003 models!

BlehmCo Maxima Front Big Brake Kit

This kit uses easy-to-find, off the shelf ALL Nissan parts! That way the next time you warp a rotor, or wear out the pads at an Auto X, track event, etc…you can just go to the local parts store and pick up replacement parts!  Not many BBKs will allow you to do that!

So what’s in this kit?

1. NEW OEM 12.6″ 2004 Maxima Rotors (included in the Complete and Basic Kits)
2. Used/Rebuilt/Remanufactured 300ZX  ALUMINUM  calipers, hardware, pads, shims, etc (included in the Complete Kit).
3. Caliper relocation bracket
4. All hardware necessary to install (nuts, bolts, washers, etc.)
5. Goodridge Stainless Steel brake lines, certified to D.O.T. FMVSS test 106 (many of the brake kits out there don’t have this)

As noted above, the kit is offered with and without the 300ZX calipers for those of you who already have some, or have a good source for them already. If you’d like me to source them for you, then prices are at the bottom of the page.

What are the benefits to this Big Brake Kit?

You guys already know the benefits of a big brake kit on your car, so I’ll point out the original parts of this kit…

It uses a NISSAN rotor that’s meant to fit on this suspension. The offsets are correct so as not to cause huge wheel clearance issues, the hub bore is a perfect fit, and the wheel stud holes are a perfect fit. It also doesn’t rub on the control arms (at least not on 3rd or 5th gens).

As most of you know, the 300ZX calipers have a plethora of pad selections out there–WAY more than the Maxima does because of the performance enthusiast base. You can go with Raybestos, Wagner, Axxis, or comparable pads for the street for a very reasonable price, or you can bump up to Hawk, Performance Friction, Porterfield, Ferodo, EBC, and many other higher performance pads for track days. If you’re in a pinch and need new pads “NOW!”, simply drive to your nearest parts store and pick some up! They’re extremely handy, as opposed to other aftermarket calipers where you usually have to order pads and wait a week for them to come in! These calipers are also designed for street use in that they have dust seals, pad shims to keep road noise to a minimum, easily obtainable rebuild kits, and all the other low maintenance benefits of a caliper designed for years of street use instead of a caliper designed to be rebuilt several times per race season.

The rotors are currently available through OEM sources (dealer), and you can also get blank, slotted, crossdrilled, or slotted and drilled from www.irotors.com. You have all kinds of choices and I will leave that up to you, but I DO NOT recommend crossdrilled rotors due to their tendency to crack. There is enough information in thousands of other places on these issues, so I won’t bother repeating them.

What wheels will these fit under?

I have tried this kit with several wheels so you can get an indication of what will fit…. These kits DO NOT FIT UNDER THE STOCK 17″ Maxima wheels! So far, every aftermarket 17″ and 18″ wheel I have tried will fit, but the 17s get close on spoke clearance–depending on wheel design. I am currently trying to compile a database of all of the wheels that fit these kits to give you an idea, but the best way is to simply measure for yourself. I make no claims to wheel fittment, but for a general guess on if they will fit or not, use these measurements:

Measure 5 1/4″ out from the center of the wheel to one of your spokes. Now measure the distance from the surface of your stock rotors. If you have at least 2 1/2″ of clearance here, then you should be fine with the kit. I can tell you for certain that 300ZX (Z32) wheels will NOT fit without a 1/2″ spacer.

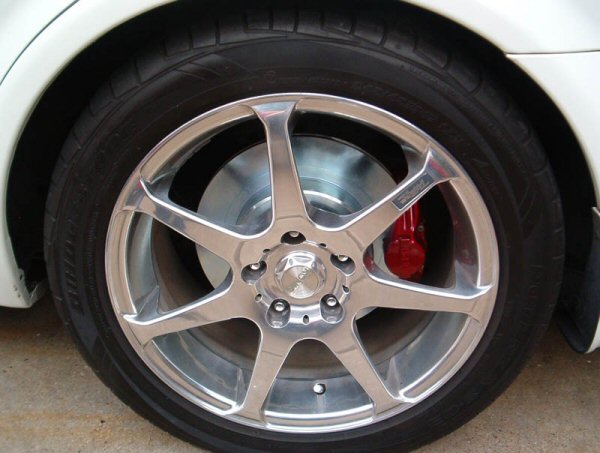

The installed kit:

For those that want to see more up close pics showing caliper clearance around the wheel and spokes, click here

And now for the part you’re really interested in–prices!

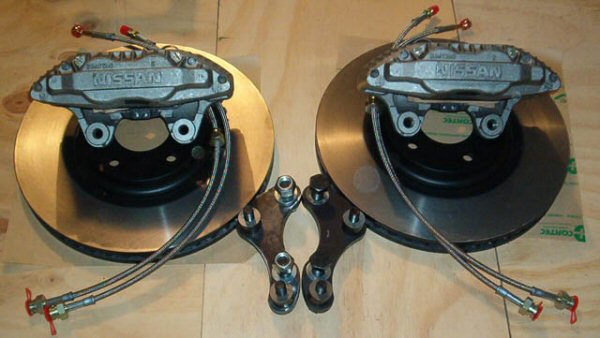

Complete Kit: $765 + shipping

This kit is ready to bolt on, with the exception of brake fluid. This kit includes:

1. Remanufactured 300ZX Calipers
2. New OEM 2004 Maxima rotors
3. Custom Stainless Steel Brake lines–these lines are custom made to adapt the 300ZX caliper fittings to the Maxima hard line.
4. Caliper relocation brackets
5. All hardware necessary to install the kit

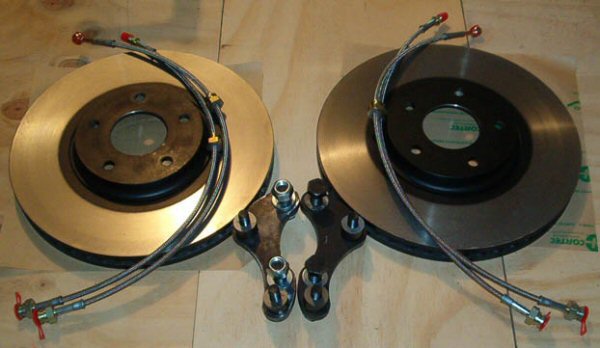

Basic kit: $440 + shipping

Note that this kit does NOT include the required calipers. I can get them if you wish, or you can supply them yourself. This kit includes:

1. New OEM 2004 Maxima rotors
2. Custom Stainless Steel Brake lines- These lines are custom made to adapt the 300ZX caliper fittings to the Maxima hard line.
3. Caliper relocation brackets
4. All hardware necessary to install the kit

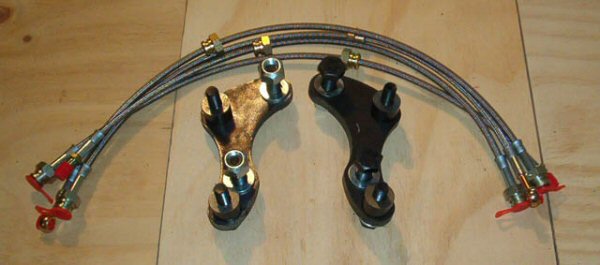

Kit without Rotors: $200 + shipping

This is for those who want to source rotors, calipers, and pads themselves. This kit includes:

1. Custom Stainless Steel Brake lines–these lines are custom made to adapt the 300ZX caliper fittings to the Maxima hard line.
2. Caliper relocation brackets
3. All hardware necessary to install the kit ( again, this kit does not include rotors or calipers )

Want me to source the 300ZX calipers for you? If so, then I can source just about anything you want:

1. Parts car pulls (cores)–whatever price I can find them. Current prices range from $150 to $250 per set
2. Cores rebuilt with OEM seal–core price, plus $60 ($30 of which is the rebuild kit). This price does NOT include new hardware. (Contact me if you want new hardware also)
3. Remanufactured calipers (loaded with generic semi-metallic pads, shims, pins, and hardware)–$350
4. I can also do powdercoating for $100 per pair on calipers. Please expect a few weeks of lead time if I have to order powder or calipers for you

BlehmCo Maxima Relocation Big Brake Kit

This kit uses easy-to-find, off the shelf ALL Nissan parts! That way the next time you warp a rotor, or wear out the pads at an Auto X, track event, etc…you can just go to the local parts store and pick up replacement parts!  Not many BBKs will allow you to do that!

What is this kit designed for?

This kit is designed for the average “spirited” driver to alleviate the rotor warpage issues that are so common on 5th Gen Maximas. It’s also an extremely affordable way to improve the cosmetics of your car if you’re running larger wheels. The factory brakes just look too small under 18″ and 19″ wheels! The other goal was to make them fit under the factory 17″ wheels–which this kit does with ease!

Not many BBKs will allow get anywhere near the price of this kit, nor will there be easily available replacement parts when it’s time to replace pads or rotors.

I tried this kit with several wheels, so you can get an indication of what will fit: So far, every 17″ and 18″ wheel I have tried will fit, but the 17s get close on rim clearance–depending on wheel design. I make no claims to wheel fittment, but I would say it’s safe to assume that most 17″ wheels will fit, and sure any 18″ wheel will also.

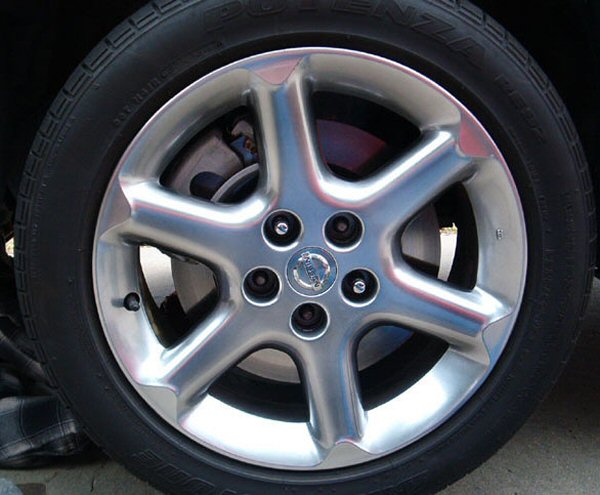

Here are several pictures of the kit, installed on Mike Hill’s gorgeous 2000 Maxima:

And now for the part you’re really interested in–prices!

Ready to Install Kit: $365 + shipping

This includes:

1. New OEM 2004 Maxima rotors (aftermarket crossdrilled or slotted rotors are now available for an additional $20)
2. Caliper relocation brackets
3. All hardware necessary to install the kit (nuts, bolts, & washers)

Complete kit, without rotors: $150 + shipping.

This includes:

1. Caliper relocation brackets
2. All hardware necessary to install the kit (nuts, bolts, & washers)

BlehmCo Maxima Big Rear Brake Kit—1995 through 2003 models

This kit uses easy-to-find, off the shelf ALL Nissan parts! That way the next time you warp a rotor, or wear out the pads at an Auto X, track event, etc…you can just go to the local parts store and pick up replacement parts!  Not many BBKs will allow you to do that!

What is it?

Z32 300ZX REAR calipers and rotors built to fit 4th and 5th gen Maximas.

What are the benefits to this Rear Big Brake Kit?

You guys already know the benefits of a big brake kit on your car, so I’ll point out the original parts of this kit…

Many of you that have purchased Big Brake Kits for the front notice a front brake bias problem now. This is safer than having a large rear bias, but it is not the best performing. The rear brakes are tiny and just aren’t up to the task once you’ve upgraded the front brake system. They also look like go kart brakes behind the larger 17″,18″,and 19″ wheels that many owners are using now!

This kit, when paired with most front brake kits, will return the brake bias to within 3% of the factory front/rear bias. In my experiences, this has provided the best overall braking–nearly zero nose dive when you’re on the brakes hard, but you can still brake into corners without locking up the back end.

As most of you know, the 300ZX calipers have a plethora of pad selections out there–WAY more than the Maxima does because of the performance enthusiast base. You can go with Raybestos, Wagner, Axxis, or comparable pads for the street for a very reasonable price, or you can bump up to Hawk, Performance Friction, Porterfield, Ferodo, EBC, and many other higher performance pads for track days. If you’re in a pinch and need new pads “NOW!”, simply drive to your nearest parts store and pick some up! They’re extremely handy, as opposed to other aftermarket calipers where you usually have to order pads and wait weeks for them to come in! These calipers are also designed for street use in that they have dust seals, pad shims to keep road noise to a minimum, easily obtainable rebuild kits, and all the other low maintenance benefits of a caliper designed for years of street use instead of a caliper designed to be rebuilt several times per race season.

You can also purchase rotors at just about any aftermarket or OEM dealer. They have a huge selection of finish, slotting and drilling, and cryo treating options.

How?

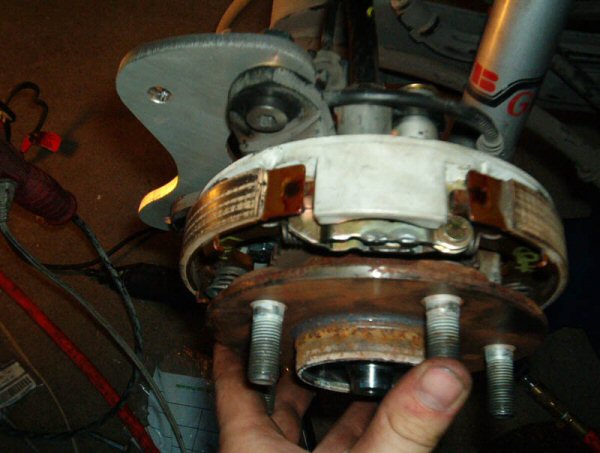

For those of you that are familiar with the Z32 brakes, they use an internal drum-type parking brake–as almost all other high performance brake systems do now. This makes caliper maintenance and pad changes extremely quick and easy, but this is also what makes designing a rear brake kit for this car very challenging. I have designed and built a rear drum-type parking brake to fit inside the Z32 rotor, and that’s what this kit is based upon.

Will this work with front Big Brake Kits from another company?

Some of the other kits out there (Stillen, Fastbrakes, Precision, etc) use different piston sizes in their calipers that will affect brake bias considerably. Please check with me before purchasing and be ready to do some measuring of your calipers (or have the part numbers ready for the calipers so I can look them up.) I have talked with Fastbrakes and confirmed the piston sizes on their calipers–their systems will work wonderfully with my rear BBK. I have yet to confirm this with other kits.

If you buy this kit for other front systems, the worst you will have to do is install a $50 brake bias adjuster from Wilwood or Tilton to make this kit run on your car. Simply be very careful about locking up the rear brakes until you have adjusted the bias to fit your system.

How Much does it cost, and what do I need?

I have set the price on my parts so that the entire setup should cost you under $1000 for everything needed to install the kit on the car. I will send you everything needed EXCEPT rear calipers, rotors, and brake fluid, which you will be able to purchase from the sources below and come out under $1000 total.

The parts I will supply are the parking brake assemblies (including custom backing plate and bracket), replacement parking brake cables (your original cables will not work), 6061 aluminum caliper relocation bracket, all fasteners and hardware required for installation, and custom rear DOT approved stainless steel brake lines made to fit this setup.

The parts you need to supply are 300ZX rotors and calipers, pads, and brake fluid. Rotors: Feel free to purchase them from any place you like, but I highly recommend IRotors.com You will need to purchase a pair of REAR rotors from a 1990-1996 300ZX.

Calipers: You can find them quite often on Ebay for under $100 a pair. Any 1990-1996 300ZX TT or N/A rear calipers will work–they’re all the same. If you purchase them used, I highly suggest rebuilding them. You can buy a rebuild kit from Orielly’s Auto Parts, Pep Boys, Autozone, etc for under $10. Many auto parts stores also carry remanufactured calipers for a reasonable cost. In Houston, they are about $100 each without core, $60 each with core.

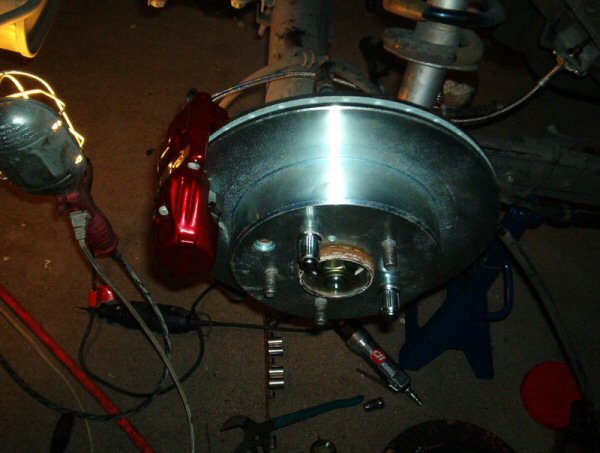

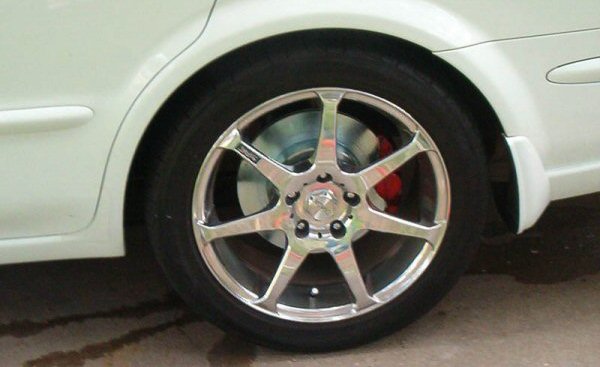

Now for some Pics!

So what’s the total price from BlehmCo?

You will send me $720 plus shipping for the parts you need from me. Shipping usually runs about $20 for anyone in the main 48 states. CA, AK, and HI are more, but I am more than happy to ship worlwide! You will still need to purchase rotors, calipers, pads, and fluid. This should run you less than $250, which puts you at just under $1000 for the entire rear brake kit!

I can also do powdercoating for $100 per pair on calipers. Please expect a few weeks of lead time if I have to order powder or calipers for you.
