Are you tired of going to the dealer for repairs when you know you can do it yourself? Got a broken power seat that is just driving you nuts? This seat gear for the front driver and passenger seats on all Nissan and Infiniti model 2003-2010. Fix that broken power seat and regain your memory positions as this is a quick fix back to a comfy position.

Check out the tutorial that we have provided and see how you can make this a fix and not go to the dealer. Dealers are asking upwards of $1400 for a new seat because they say it’s not possible to fix. Please verify your seat gear before purchase for easier processing. A simple look at the gear will help determine proper choosing.

Installation Instructions: Infiniti_Nissan_FAQ_Seat_Gear_Replacement

#1 is driver’s side with neck and collar

#2 is driver’s side without neck and collar with spline shaft

#3 is the passenger’s side without neck and collar with a smooth shaft

Via Odometer Gears

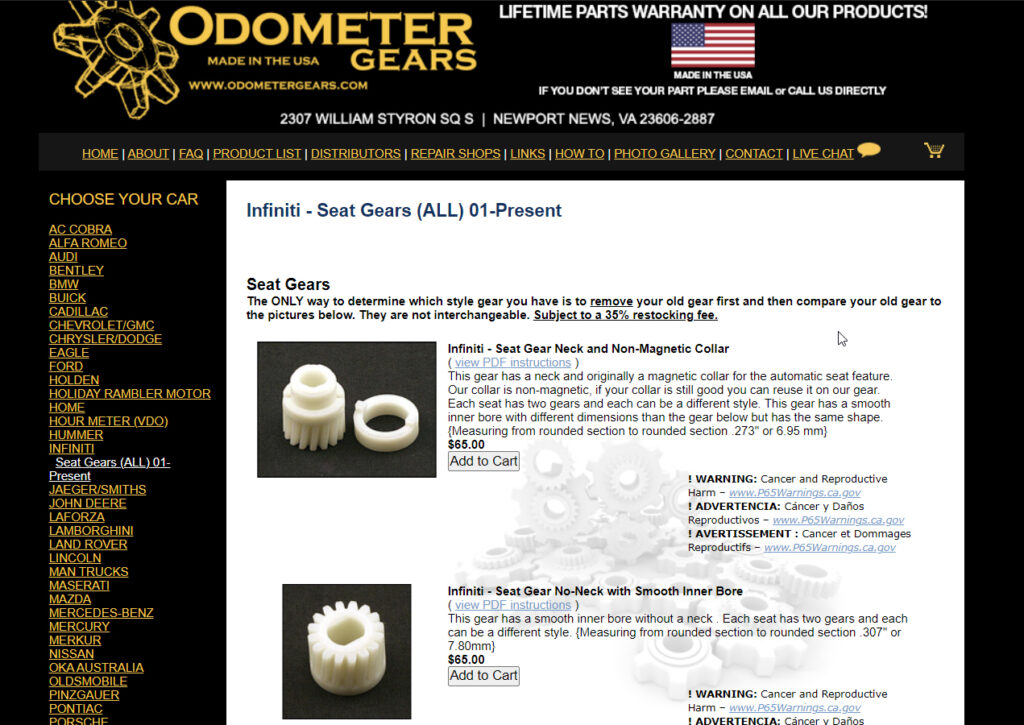

Order Link: https://www.odometergears.com/products/Infiniti/Seat+Gears+%28ALL%29+01-Present/98

The ONLY way to determine which style of gear you have is to remove your old gear first and then compare your old gear to the pictures below. They are not interchangeable. Subject to a 35% restocking fee.

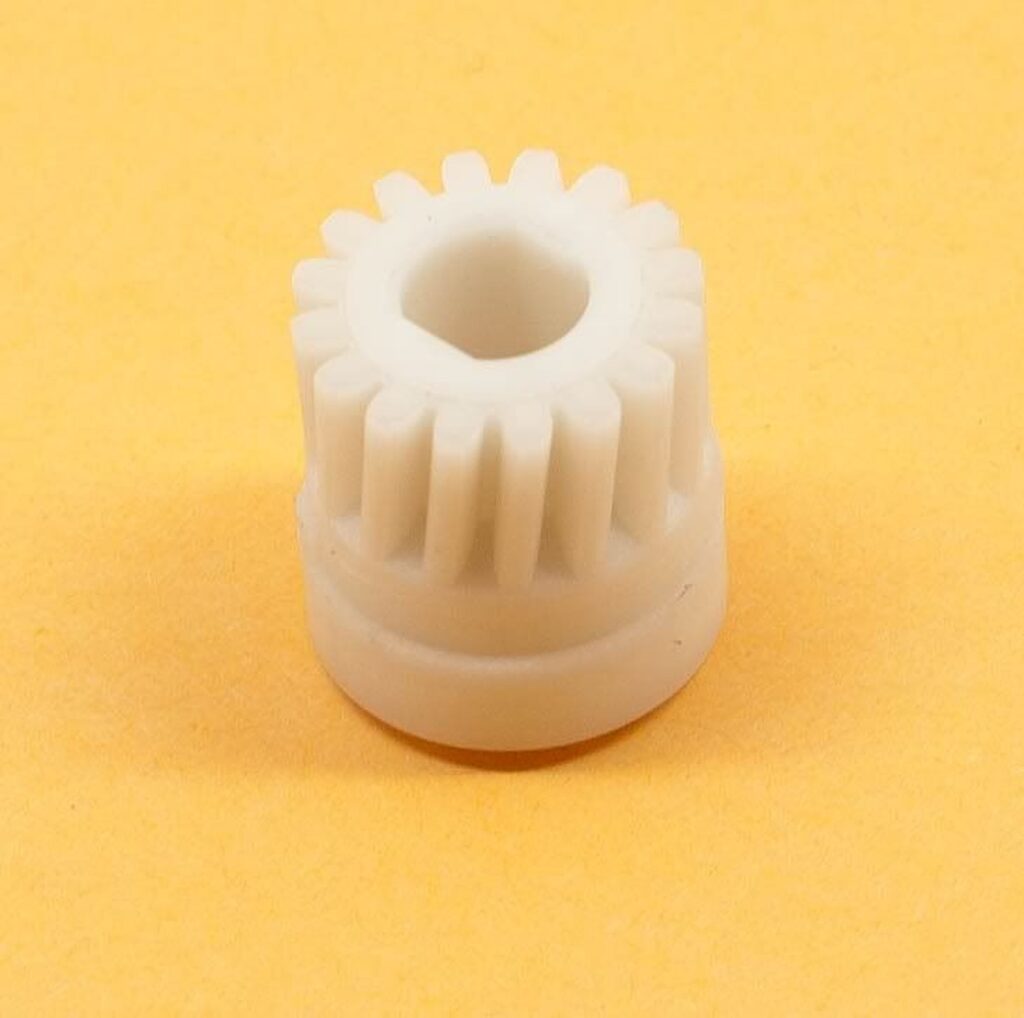

Infiniti – Seat Gear Neck and Non-Magnetic Collar ($65.00)

This gear has a neck and originally a magnetic collar for the automatic seat feature. Our collar is non-magnetic, if your collar is still good you can reuse it on our gear. Each seat has two gears and each can be a different style. This gear has a smooth inner bore with different dimensions than the gear below but has the same shape. {Measuring from rounded section to rounded section .273″ or 6.95 mm}.

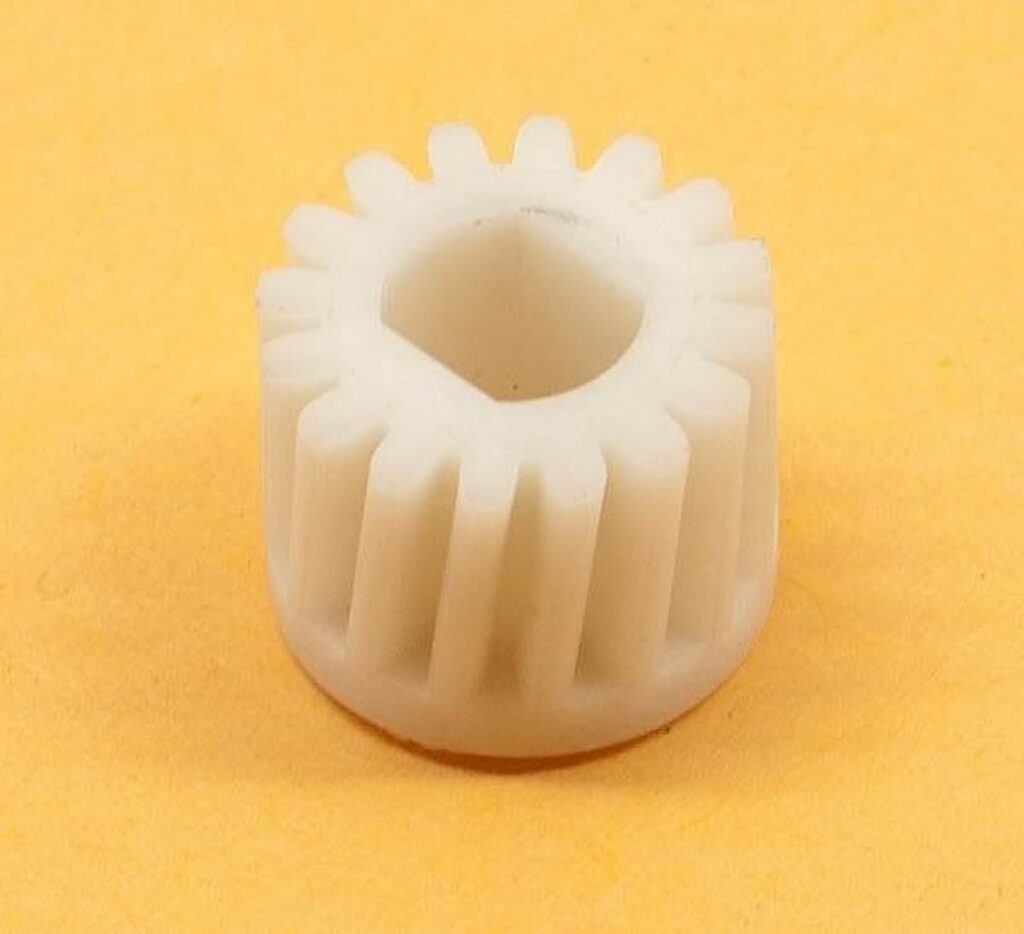

Infiniti – Seat Gear No-Neck with Smooth Inner Bore ($65.00)

This gear has a smooth inner bore without a neck. Each seat has two gears and each can be a different style. {Measuring from rounded section to rounded section .307″ or 7.80mm}

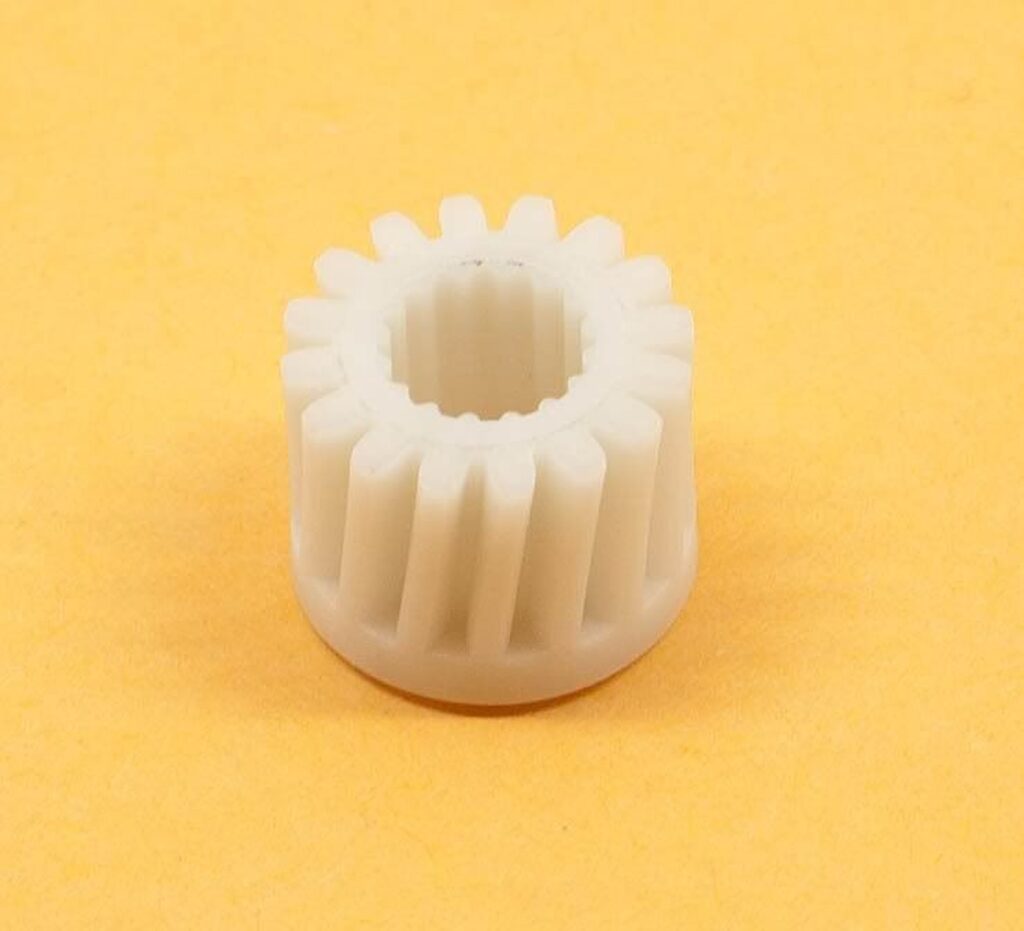

Infiniti – Seat Gear No-Neck with Splined Inner Bore ($65.00)

This gear has a splined inner bore without a neck. Each seat has two gears and each can be a different style. {This is the only splined style gear and does not require to be measured.}
