my4thgen 95-99

Installing and Wiring a 2020 Maxima Steering Wheel Air Bag on a 4th Gen (1995-1999)

Member Credit: Eddy

Step 1: Disconnect the airbag connector on a 4th-generation Nissan Maxima. To do this, take off the plastic cover and cut the airbag plug as much as possible. Alternatively, you can obtain a replacement connector from a previously deployed airbag if you wish to keep yours intact for resale.

Step 2: Gently separate the white wires. Among them, you will find two distinct colors: one is red, and the other is brown.

Step 3: Connect the red wire to the yellow wire, and similarly, join the blue wire to the brown wire. Secure these connections by soldering them and then insulate with tape.

Congratulations! Your airbag and steering wheel have been successfully modernized. Enjoy the upgraded features!

Loading

Keep Reading
By
my4thgen 95-99

How to Reset Flashing Airbag Light on 1995-1999 4thgen Nissan Maxima

Community Member Credit: Eddy

Just verified this procedure worked on my 1998 Nissan Maxima after installing a new model steering wheel and airbag.

  1. Open the driver’s side door.
  2. Put the key in the ignition and turn to ON (but don’t start the vehicle)
  3. Within 7 seconds of turning the key to ON, push the driver’s side door switch button at least 5 times.
    (The DOOR SWITCH is the trigger switch for interior lights located next to your door latch on the car)

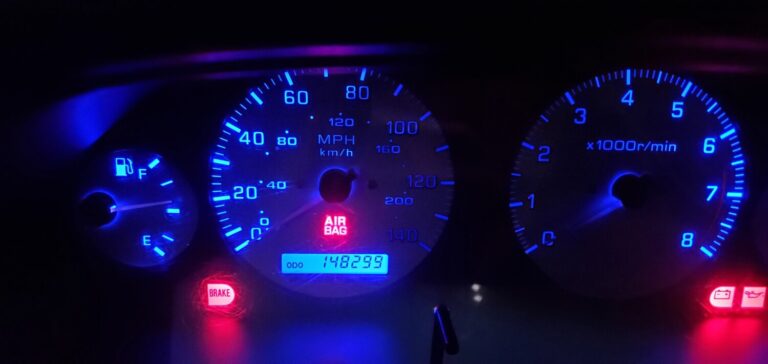

  4. The Air Bag light should go solid…give it at least 7 seconds, and it should begin to blink a 3 second, 2 second on/off pattern.
  5. Turn ignition to OFF and remove the key.
  6. Start the vehicle, and wait for the Air Bag light to turn off to verify that it worked.

Loading

Keep Reading
By
my5thgen 00-03

How to Reset Flashing Airbag Light on 2002-2003 5thgen Nissan Maxima

Community Member Credit: Eddy

Just verified this procedure worked on my 2002 Nissan Maxima after installing a new model steering wheel and airbag.

  1. Turn key into “ON” position (but do not start the car)
  2. Watch the airbag light closely. It will stay on for a few secs. and then as soon as it blinks off (the start of the flashing), turn the key off instantly.
  3. Wait 3 seconds
  4. Repeat steps 1-3 two more times until you have done the cycle three times.
  5. Turn the ignition off and then start the engine to verify the indicator has been reset

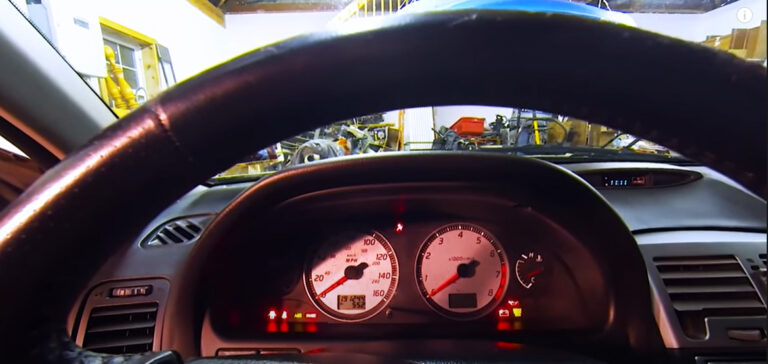

Photo of Steering Wheel Installed

2019 8thgen Nissan Maxima Steering wheel and airbag combination.
