Issues: My power sunroof switch stopped working this weekend on my ’03 Maxima GLE. I pull it backwards for the sunroof to slide back and nothing happens?
Solution:
This happens to me almost every time I disconnect my battery terminal. I found that this will usually fix it: Use the sunroof tilt switch to open it all the way (you will have to push it a bunch of times), and then do the same thing to close it all the way. Once you open it and close it all the way using the switch, then try using the slider switch thing, and it should open. If it doesn’t, turn your car off and back on and try again. This works almost every time for me.
You shouldn’t have to open it all the way. Just close it and hold the tilt switch (close) until you hear a click…that will reset the switches.
How to Fix/Reset Sunroof motor:
Close your sunroof all the way.
Turn off your car.
Disconnect your battery.
Turn on your lights, and step on your brakes. Do it like 10 times. (You are basically draining the system.)
I have a 2009 Maxima SV with both electric tilt and telescoping functions. I am at 92k miles and recently my tilt motor stopped adjusting the steering wheel, I know, first-world problems here. I know the motor still worked because you can hear it moving what’s left of the gear.
I did some research and yes, you can buy a new motor from Nissan for $200. However, in my research, I ran into this product – Dorman 905-522. At this point in time, it’s a poorly made product and badly advertised as well. Nowhere, does it say that it’s compatible with 09 Maxima, though later Maxima’s are on the compatibility list. I saw a single review of this product on amazon and decided to take a plunge.
Yesterday, I had the “pleasure” of repairing my motor. So the product comes with new shafts and molded on Nylon gears as well as C-clips and some grease. It also comes with pretty good instructions on the actual repair.
Once you have the motor out, you follow a couple of steps from Dorman’s manual, specifically:
Take off the c-clip or locking the o-washer from the end of the shaft.
Remove a set screw/spring from the adjustment block (located on the side of the block, inner hex)
Unscrew adjustment block
Use the permanent marker to draw a line across the outer nut, inner locking nut, and body of the motor. This is necessary to apply the same preload to the inner bearings
Remove the large hex nut with a crescent wrench, it was not super tight. I used adjustable pliers to get it off.
Then slide the black spacer block included in the Dorman kit over the shaft, it should engage the inner nut. The block is square, but the nut has 12 points, so it will engage without any issues.
Spin the inner nut off
Remove old shaft, be careful, there is a bearing on the bottom and the top of the nylon gear.
At this point you should confirm that your old nylon gear is busted, mine had a whole chunk of gear missing. Assembly is reverse of disassembly.
But here is some bad news and good news.
Bad news first: When I tried to spin the adjustment block on the new shaft, the block was getting bound up in many spots, so there are problems with threads on these replacement parts. Since I have gone so far with the repair, I did not want to put the old broken part back in. What I did is used small files to file down the metal threads on the new shaft. I basically put some taper on the shaft threads and after about 2.5 hours of manual labor, the adjustment block would thread on smoothly without any issues.
Of course, it’s completely asinine to expect a person to file down metal threads to get the part to work. So here comes some mixed news that hopefully will turn into good news soon. This morning I contacted Dorman about my experience and they told me that they know of this issue and the product is supposed to have been put on hold with no further sales taking place until they retool and fix the issue. They were not able to tell me when the new product will be available, but hopefully soon. I left a 3-star review for this product on Amazon, and hopefully, when Dorman gets a new design done I will be able to update it to a 5-star review.
The good news is that there is no need to purchase $200+ new motors and throw out a perfectly good motor with broken plastic gear. The Dorman kit cost me $35 shipped from RockAuto, the kit includes both tilt and telescoping motor shafts. The R&R of the motor, given a proper shaft, is no more than 30 mins and that is taking things apart slowly. I can do it in 5mins now. For crafty guys, the threads on these shafts are M10 x 2.0. I don’t have a die or thread chaser this size, as a matter of fact, it’s a very oddball size that’s not easily gotten.
I do have some pics, but frankly, between the TSB and Dorman manual, you should have no issues taking things out and putting it all together.

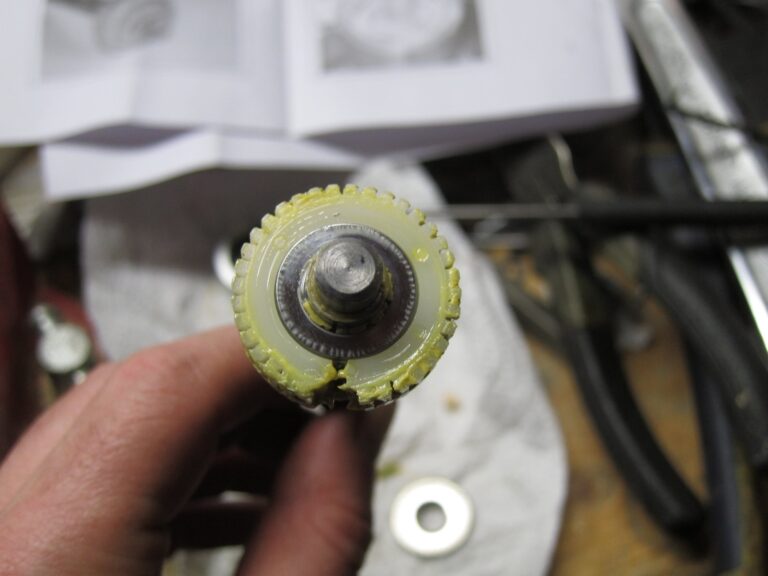

Old nylon gear broke, chunk of it is missing
New Dorman gear side by side with old one
Old gear, notice that the shaft threads have a small taper to them. The gear also still has the bearing (shiny silver disk) still on it.
Tilt motor completely disassembled in the wise.
Tilt motor reassembled with new shaft.
Update
A follow-up on my repair. Sometime last fall I had an issue with my repaired tilt motor. One morning it just gave out, but the next day resumed its function. I opted to simply adjust the steering wheel and turn off the easy-entry function.
I was not sure what was wrong with the motor and thought that perhaps the motor itself is giving out. The telescoping motor died sometime earlier, don’t recall when exactly. After the initial repair in 2015, I did receive an “updated” part from Dorman in 2016. That kit was on the shelf until yesterday.
Since I got time on my hands, I decided to fix both motors. Followed my own links to get the motors out, but ran into an issue with removing the telescoping motor out. Mine died in a position that was very close to the dash, preventing easy motor removal.
The procedure explains that you want to pull on the steering wheel while actuating the motor to completely telescope/retract it out. I was not successful in that procedure. What I did instead was used a prybar between the white bushing and the rest of the steering column. It did not require much effort and applying prybar pressure while actuating the motor accomplished the task. Note that the motor had to be bolted in while performing the task.
On the positive side, I had no issues whatsoever with redesigned Dorman parts this time around. Both shafts were a perfect match for factory threads and no time had to be wasted to file anything down. I can wholeheartedly recommend the Dorman kit vs buying new factory motors or even salvage ones. Again, the most important part is to mark the relative position of how parts are put together prior to disassembly. After replacing the shafts, just realign things to the marks that you made and preloads will be perfect.
For future problem solvers, my 2003 Maxima brake and battery lights were flickering. The lights were eventually solid with no battery charge leading to believe an alternator problem. Went through the process of replacing the alternator with a remanufactured unit from Advance Auto. I got everything back together and the battery still wasn’t charging.
I realized the Alternator ground bracket was corroded as can be. Being my first time diagnosing my electrical system I’m now understanding the need for all clean & tight connections. I ended up getting out the multimeter to test continuity and it was so corroded in many spots there was none. I cleaned connections with a silver wire brush on drill brought it from 4v to 14.5v on the new alternator.
This 2003 Nissan Maxima came in with the complaint that only the highest blower speed was working. The air would not blow at all, on the lower speeds. Suspecting a faulty blower resistor, I went to the passenger side of the dash.

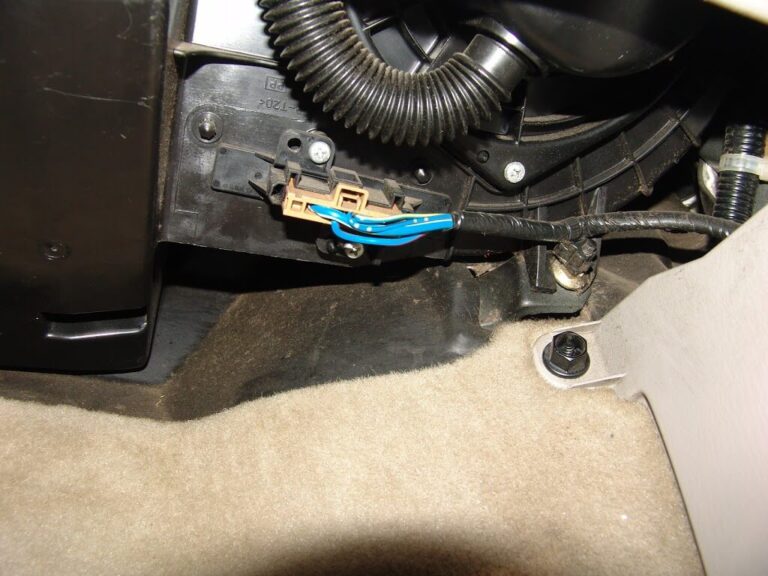

The blower resistor is located near the firewall under the passenger side of the dash. It is the piece that the connector with blue wires is attached to.
Two phillip’s headed screws hold the resistor to the blower housing.
To release the locking tab, it needs to be pushed in where I am pointing at with my pocket screwdriver.
If you want to test the system this is what you will need to know.
The blower resistor and blower switch are on the ground side of the blower motor circuit.
With the resistor harness disconnected and the ignition on, there will be bleed through battery voltage on the larger blue/white wire. In the blower switch position 4 or high the blower switch directly connects this wire to chassis ground and the highest blower speed is achieved.
When the blower speed is set to the 3 position the ground is sent from the blower switch to the resistor on the blue/red wire. It passes through one resistor and the speed is reduced slightly.
When blower speed 2 is selected the ground again is sent form the blower switch to the resistor but this time it is sent on the blue/yellow wire. At the resistor is passes through two resistors and the speed is dropped even further.
When blower speed 1 is selected the ground signal again is sent from the blower switch to the blower resistor and this time it is on the blue/black wire. At the resistor is passes through three resistors and the lowest blower speed is achieved.
If there is no bleed through voltage at the blue/white wire you will need to see if there is power on the white/blue wire at the blower motor itself.
If voltage is not present on the white/blue wire at the blower motor you will need to check the fuses and relay. If power is present the blower motor is faulty.
I also wound up checking and changing a restricted cabin air filter in this vehicle. It is likely that the dirty filter contributed to the resistor failure.
