my5thgen 00-03

Ecliptech Sequential RPM Shift-P2 Light Installed on 5thgen Nissan Maxima

Community Member Credit: Eddy

I wanted to add a sequential shift light to my 2002 Nissan Maxima. After doing some research, I decided to go with the Ecliptech Shift-P2 Shift Light Light. Pretty simple and straightforward to install. I ordered it from the link below and these guys shipped it out super-fast. Would recommend ordering from them if you choose to go this route. It was super easy to install as well.

Order Link: https://flyinmiata.com/products/ecliptech-shift-p2-shift-light?variant=43356833251583
Price: $219.00

Shift-P2 - Ecliptech

Benefits:

  • You get smooth and consistent anticipation of your shift point.
  • It reduces driver workload and fatigue, both in sprint races and endurance events.
  • It provides drivers with reference points for performance.
  • You can achieve consistent staging RPM for standing starts & launches – so no more watching the tacho on the start line!
  • In enduro events, you can manage your fuel by short-shifting at an indicated point below the peak RPM.
    You can improve your lap time consistency and get up to speed at new tracks and with new suspension setups faster.
  • Eliminate unnecessary engine/transmission wear by keeping the RPM within the range you want, without bouncing off the limiter.
  • A good progressive RPM display can give you what you don’t have… a gauge in your peripheral vision showing the range of RPM you’re interested in! It gives you a reference for improving performance and building on skills. For example, maintaining staging RPM while concentrating on race start, smooth anticipated shift points and maintaining corner entry pace.

Installation:

  • RPM (Blue) –> PIN 34 on ECU (Green/White Wire)
  • Switched 12V (Red)
  • Ground (Black)

ECU Pinout:

Demo Video:

Product Feature & Walkthrough from Manufacturer

Loading

Keep Reading
By
my5thgen 00-03

5thgen Nissan Maxima Faulty Inaccurate Fuel Gauge Fix (Re-Solder 4 Resistor Joints)

Community Member Credit: Eddy

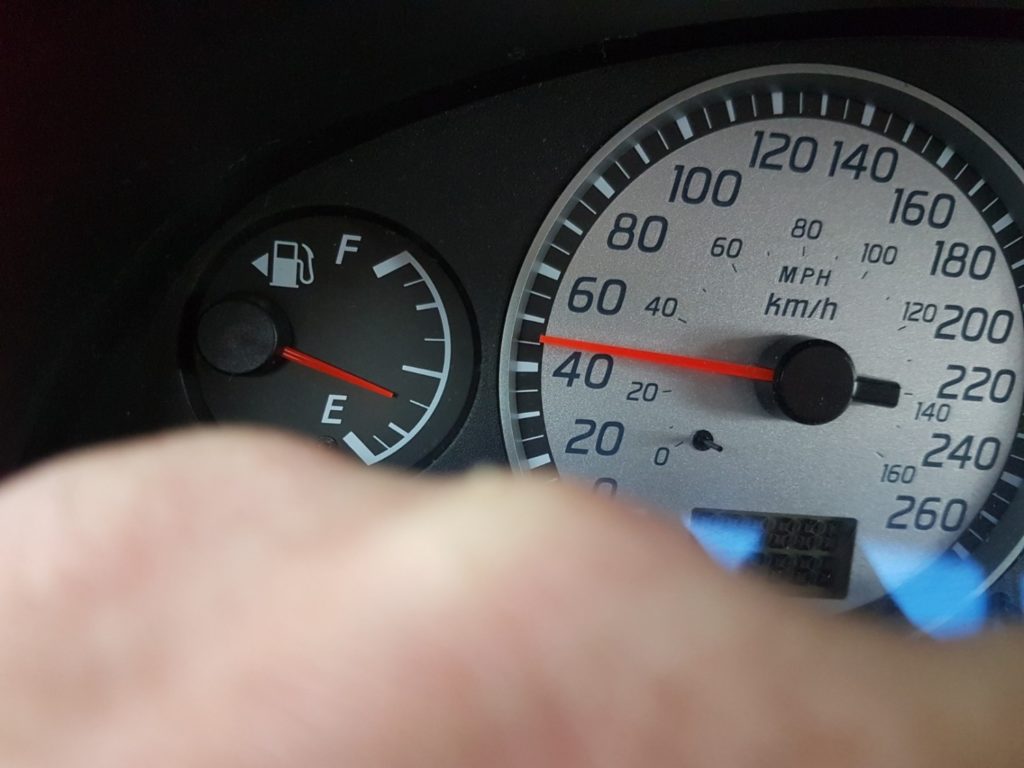

If you found this post, you most likely ran out of gas due to inaccurate fuel gauge readings (or you already knew the gauge didn’t work). And now you are looking to see how to fix it. Most of the time, it’s the cluster that is bad (specifically the solder joints for the fuel gauge). Don’t go too crazy in replacing parts (you can try diagnostics procedure in this post). To address the issue, you have a couple of options.

Options:

  1. Get a new cluster with close mileage
  2. Upgrade to i35 Cluster (Most Popular Option). You will have to get your cluster miles reprogrammed if you want to keep it close to your original miles.
  3. Repair and re-solder your existing cluster (see below). You can do this yourself if you are handy with soldering. If not, you can send it to one of them cluster repair companies. Most aren’t willing to do this, so they just upgrade to the i35 cluster. It looks much better and is less prone the fuel gauge issues.

If you choose option 3, you will need to resolder the joints on the four resistors below. Over time, the joints to the board can crack causing intermittent or permanent issues with fuel readings. Resoldering the joints on the 4 resistors should solve the problem of the fuel gauge reading too high.

Resolder the joints on the following 4 Resistors: R4, R64, R124, and R125.

How to Install Aftermarket Fuel Gauge in your Nissan Maxima

Diagnostic Procedures
